Creating music with Logic Pro X

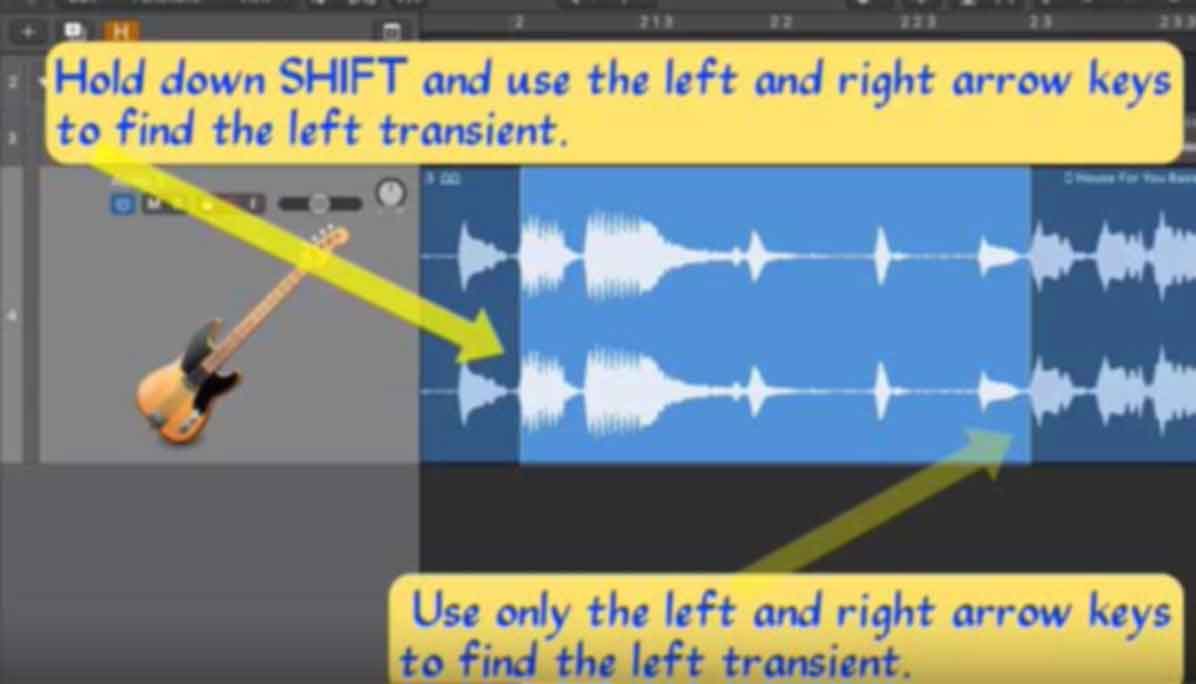

In this video tutorial you learn how you can use an audio bass apple loop to create your own unique bass line.
This video will show you audio region editing techniques you can apply to anything that involves audio region editing in logic Pro.

Creating music with Logic Pro X

Quantizing Midi with Logic’s Score Editor

Quantizing Midi with Logic’s Score Editor

Logic Pro x’s score editor does an amazing job in translating our midi performance into music notation.
what is important to know though is that quantizing the score view does not effect the actual Midi events, thus is not changing what we hear.
However, Logic offers a way to change the midi events in accordance to the score view.
That’s what this video tutorial is all about.

Creating music with Logic Pro X

Screensets In Logic Pro X


Note: This aricle is designed to complement my video tutorial <Screensets in Logic Pro X> that you can find below. Be sure you read the article at least up to the video before watching it, because it includes information not included in the video.


Screensets is arguably one of the coolest features of Logic Pro X. I have to admit that the way screensets are managed in Logic can be confusing at first, but it all makes a lot of sense once you get it.

Bottom line, Screensets can speed up your workflow tremendously. I simply can’t imagine working without them anymore.

What are Screensets in Logic Pro X

Screensets are snapshots of your screen. A Screenset stores the layout of various windows, including their display size, zoom levels, position, and other settings. Logic can store up to 99 screensets.

Transcript from the video tutorial

Creating and saving screensets

That’s where the confusion comes in. It’s important to grasp the concept that we don’t have to save screensets with an explicit command because it happens automatically in the background. This means that every change you make to your layout will be saved to the active screenset, thus altering that screenset, unless the active screenset is in locked mode, as explained later.

Because of that, it can easily happen that you override your favorite screenset by closing, moving, or zooming windows. That’s why it is so important to lock your favorite screensets. Always remember that once a screen set is locked, any changes you make to it will be gone the second you recall that screenset. If you want to keep those changes you made to a locked screenset you first have to unlock and then re-lock the active screen set.

Here is an example for creating a screenset

[embedplusvideo height=”420″ width=”640″ editlink=”” standard=”″ vars=”ytid=wwrQXBjf8gc&width=640&height=420&start=&stop=&rs=w&hd=0&autoplay=0&react=1&chapters=&notes=” id=”ep7162″ /]

When you first open a new project, the active screenset is screenset 1. You can tell because in the screenset menu, which you find just to the left of the help menu, you see the number 1.

For this example I picked a song for which I have already finished recording all my tracks and regions. Now I want to create a screenset that shows all the regions of my song at an optimized zoom level.

I only need the main window for that, which is also the only window that is open by default when you start a new project.

First we need to close all those edit Windows and inspectors I don’t want to see in my screenset 1 anymore.

Let’s use those handy default key commands:

Typing “f” closes the list window,

typing “I” closes the channel strip inspector,

and typing “e” closes the piano roll editor.

Now all that’s left is the main window’s trackheader and the workspace area.

To see all the regions of the project, press command + A to first select all regions, and then the letter Z to make Logic automatically set the zoom level that shows all the regions. Make sure you immediately deselect all regions with the key command shift + option + D, otherwise you may accidentally move or delete them.

Now we want to lock the screenset to prevent Logic from overwriting it, because Logic saves any changes you make to a screenset, unless it is in locked mode.

That’s it. I can now quickly recall this layout for this particular song by selecting screenset one.

Let’s now create a second screenset that shows several midi editors.

Modifying Screenset 2

About Logic’s Window Management

It’s important to understand that we can open a window inside the main window (embedded window), or as a separate second window which we can move around freely, and which will remain even when we close the main window.

The Window menu shows us all the independent windows and their respective key commands.

As you can see their are a lot of windows we can open, position and size however we please. We can even open several instances of the same window. As they say “The sky is the limit”.

This allows us to customize our screensets to fit our workflow perfectly.

Creating the new layout for screenset 2.

In our previous example we only used the Main Window. For screenset 2 though, I don’t want to include the main window because I have that already in screenset 1. Instead, I want to create a collection of several midi editors and the marker list.
The first step to customizing a screenset is to select that screenset. That’s what trips most users. In my case this means I press 2 to select screenset 2 before I do anything else.

Before we start making changes to a screenset’s layout we want to make sure it isn’t in lock mode. To do so we go to the screenset menu to find out which lock mode option is available. If we see “lock” as an option it means the screenset is unlocked, and if it says unlock it obviously means the set is currently in lock mode.

Now I’m ready to create the layout for screenset 2.

I don’t need the Main window for the layout I’m about to create for screen set 2. Instead I want to open  a few independent windows that I can place and size however I like.

Closing the Main window

A screenset has to have at least one open window, because if we attempt to close the last window Logic thinks we actually want to close the project, as we can see by the closing dialog that pops up.

Hence, we need to first open a second window before we can close the main window.

Important Key Commands for Midi editors

Let’s now pick a few midi editing related windows from the Window menu.

By the way, this might be a good time to memorize the key commands for those windows.

  • Command 4 for the Piano Roll Editor window
  • Command 5 for the Score Editor window
  • Command 7 for the Event List Editor window

The Marker List window is actually not part of the Window menu. Instead, it lives in the Navigation Window. It does not have a key command assigned to it by default. I assigned the key F19 to it because I use it a lot.

Opening and positioning the windows

First I type Command 4 to open the Piano Roll Editor window. As explained above, now that I have two windows open, I can now close the main window.

Lets position and size it right away.

Next I type Command 5 to open the Score Editor window and position and size it underneath the Piano Roll Editor window.

Now I open the Navigation List window that we find in the Navigation menu. Lets place it in the lower right corner.

And last but not least I type Command 7 for the Event List Editor and position and size it to the right of the Piano Roll Editor window.

Screenset 2 has now a great Midi Editing layout.

Lets make sure it stays like that by selecting LOCK from the screenset menu. Now is also a good time to name it. I call it Midi Editors.
I just created two very useful screensets for my song which I can instantly access by typing the number 1 for screenset 1, and  2 for screenset 2.

Using a Logic screenset as a template for other screensets

You might want to  use an existing screenset as a template for a new screenset. You can easily do so by using the duplicate screenset command from the screenset menu. In the duplicate screenset dialog you can determine the new screenset number and a new name.



Creating music with Logic Pro X

How to explode individual drum parts to separate tracks for processing in Logic X

In this article you will learn how to explode the individual drum parts from a region onto separate tracks in Logic X for individual processing. This article is mostly a transcription of the training video posted below.

Let me explain why you would want to do this. Let’s say you just created a great drum track. All those midi events do now show up in one region on one track. This means you can only process all the drum sounds together. Most engineers however like to have control over each individual drum sound, in the same way they have control over each track of a multi track recording of a real drum set.

To be able to process the kick, snare, hi-hat and other drum sounds individually we need to put each drum sound on a separate region on a track that has it’s own channel strip.

With the “separate by note pitch” command we can make logic do this for us in one simple step. The best way to get to the command is by doing a right-click on the drum region you want to process. This will open the contextual menu. Scroll down to “midi” and select the “separate by note pitch” command from the midi sub menu.

Logic will then create new regions for each individual drum sound along with new tracks for those regions. However, those tracks use the same channel strip as you can see in the mixer where you will find only one channel strip for all those newly created tracks.

That’s why we have to create new tracks with individual channel strips and then move each region to it’s corresponding track.

To create new tracks with each having it’s unique channel strip assigned to it click on the duplicate track button here after selecting the drum track. With each click you create a new track with a new channel strip that has the same settings then the parent track.

All you have to do now is move each region to it’s corresponding track.

Let’s solo some of the individual drum part to make sure it worked. As you can see and hear it did work. You can process each drum sound to your liking.

Please get back to me with any questions or suggestions. Also, if you know of a faster way to achier the same goal please let me know.
